软管、橡胶管、塑料管、接头



前页
商品列表
后页
7119(英制管螺纹铰接接头)

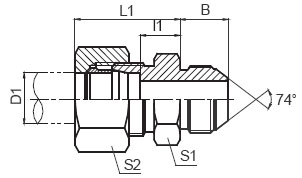

7125(美制JIC74°锥密封)

编码 型号 螺纹 管子外径 尺寸 压力等级
E F D1 B l1 L1 S1 S2 MPa
CH631400300 7125-12-4 M12×1.5 7/16"×20 6 14 9 24 14 14 31.5轻系列L
CH631400400 7125-14-04 M14×1.5 7/16"×20 8 14 8 23 15 17
CH631400500 7125-14-06 M14×1.5 9/16"×18 8 14.1 8 23 15 17
CH631400600 7125-16-06 M16×1.5 9/16"×18 10 14.1 9 24 17 19
CH631400700 7125-18-06 M18×1.5 9/16"×18 12 14.1 10 25 19 22
CH631400800 7125-18-08 M18×1.5 3/4"×16 12 16.7 10 25 22 22
CH631400900 7125-22-08 M22×1.5 3/4"×16 15 16.7 10.8 26 24 27
CH631401000 7125-22-10 M22×1.5 7/8"×14 15 19.3 11 26 24 27
CH631401100 7125-26-10 M26×1.5 7/8"×14 18 19.3 11.5 28 27 32
CH631401200 7125-26-12 M26×1.5 1.1/16"×12 18 21.9 11.6 28 30 32
CH631401300 7125-30-12 M30×2 1.1/16"×12 22 21.9 13.5 30 32 36 16轻系列L
CH631401600 7125-36-16 M36×2 1.5/16"×12 28 23.1 14.5 31 41 41
CH631401900 7125-45-20 M45×2 1.5/8"×12 35 24.3 14.5 36 46 50
CH631402100 7125-52-20 M52×2 1.5/8"×12 42 24.3 16 39 55 60
CH631402200 7125-52-24 M52×2 1.7/8'×12 42 27.5 16 39 55 60
CH631402300 7125-14-04S M14×1.5 7/16"×20 6 14 11 26 14 14 63重系列S
CH631402400 7125-16-04S M16×1.5 7/16"×20 8 14 13 28 17 19
CH631402500 7125-16-06S M16×1.5 9/16"×18 8 14.1 12.9 28 17 34
CH631402600 7125-18-04S M18×1.5 7/16"×20 10 14 12.5 29 19 22
CH631402700 7125-18-06S M18×1.5 9/16"×18 10 14.1 12.5 29 19 22
CH631402800 7125-20-06S M20×1.5 9/16"×18 12 14.1 14.5 31 22 24
CH631402900 7125-20-08S M20×1.5 3/4"×16 12 16.7 14.3 31 22 24
CH631403000 7125-22-08S M22×1.5 3/4"×16 14 16.7 16 34 24 27
CH631403100 7125-24-08S M24×1.5 3/4"×16 16 16.7 15.5 34 27 30 40重系列S
CH631403200 7125-24-10S M24×1.5 7/8"×14 16 19.3 15.5 34 27 30
CH631403300 7125-30-12S M30×2 1.1/16"×12 20 21.9 17.5 39 32 36
CH631403400 7125-36-12S M36×2 1.1/16"×12 25 21.9 19 43 38 46
CH631403500 7125-36-16S M36×2 1.5/16"×12 25 23.1 19 43 38 46
CH631403600 7125-42-20S M42×2 1.5/8"×12 30 24.3 20.5 47 46 50
CH631403700 7125-52-24S M52×2 1.7/8"×12 38 27.5 23 54 55 60 31.5重系列S
